Bộ điều khiển nhiệt độ hiển thị kép W1308 10A Bộ điều khiển cảnh báo nhiệt kỹ thuật số có đầu dò
Mô tả sản phẩm
Instructions
1. Connect the power supply and load according to the instructions. Be careful not to overpressure and overload!
2. Setting mode, long press SET for 5 seconds will display P0 Short press SET to set H (red light) to heating mode C (green light) to cooling mode
3. Set the stop temperature, press the SET screen once. Press the up and down keys to directly set the desired temperature.
4. ENT is the confirmation button. Press and hold this button to realize the function of power on/off.
Technical parameters:
Temperature control range: -50 to 120 ° C
Resolution: -9.9 to 99.9 hours 0.1 °C Other temperature range 1 °C
Temperature measurement accuracy: 0.2% FS
Temperature control accuracy: 0.1 °C
Refresh rate: 2 times / sec
Input power: 12V-24V-220V optional (see purchase parameters)
Measurement input: NTC10K (B3950) 1 meter waterproof sensor
Output type: relay output, maximum capacity 10A
Environmental requirements: -30 ~ 60 ° C humidity 20% - 85%
Machine size: 100*48*28mm
Opening size: 27*22mm
Package:

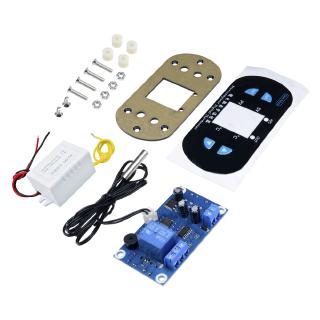

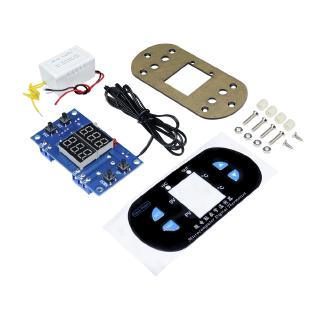

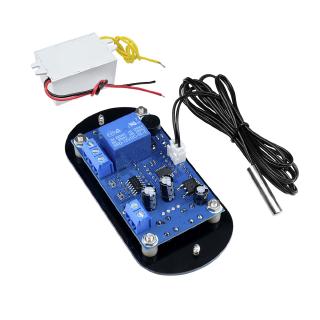

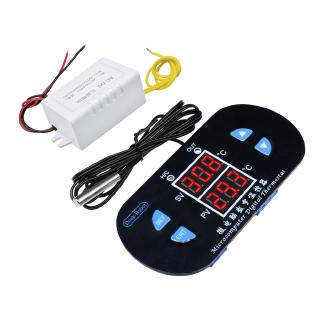

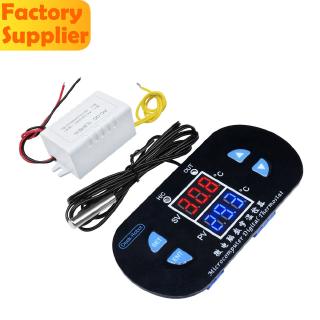

1 x W1308 110V 220V 10A Digital Dual LED Display Thermostat Alarm Controller
