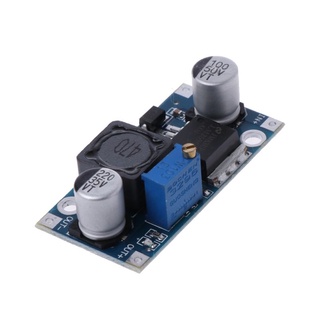

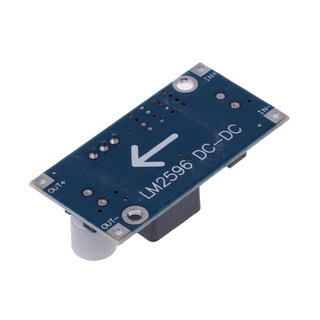

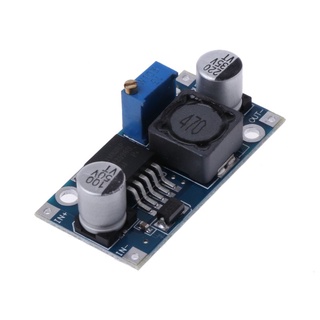

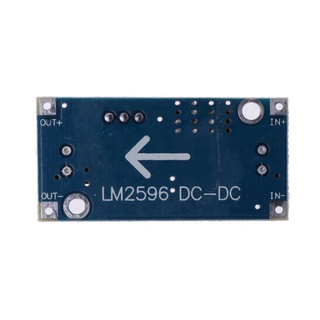

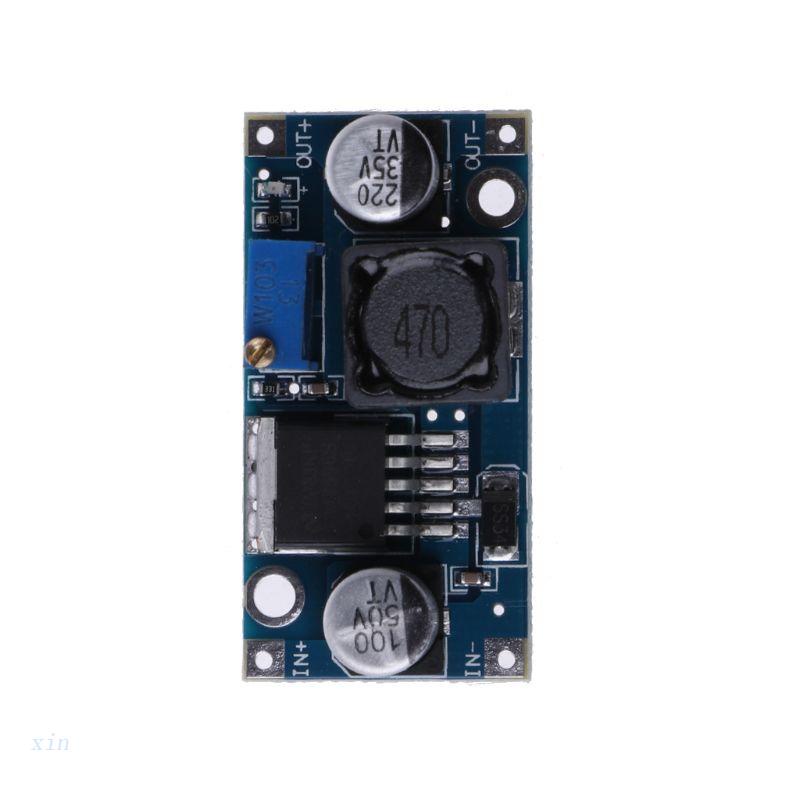

XI LM2596 DC-DC Voltage Regulator Converter 3-40V Adjustable Step-Down Module

LM2596 DC-DC Voltage Regulator Converter 3-40V Adjustable Step-Down Module
Name : LM2596 DC-DC for module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm x 21mm x14mm(Long x Width xHight)
Features:
1. the range of input voltage: 3.2 V to 40 V for dc (input voltage must be higher than to the output voltage of 1.5 V above. Can'for t booster)
2. the range of output voltage: 1.25 V for dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

Instructions:
1. Power (3-40V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

Note:
Current work long hours is recommended for use in less than 2.5A,
while adding bulkHeat sink (10W output above),because it is the step-down module,
in order to ensure stable output Set,please keep the minimum 1.5V differential.

Package Included:
1PCS x DC-DC Adjustable Step-up Power Converter Module.
